Dettagli

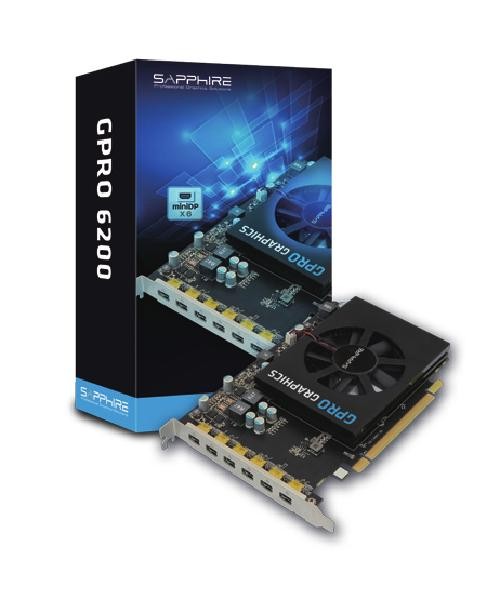

La GPRO 6200 è stata progettata per fornire pareti di visualizzazione di informazioni interattive al pubblico.
Il GPRO 6200 è una potente soluzione in grado di pilotare fino a 6 display. È il prodotto più efficiente, stabile e affidabile della sua categoria per il pilotaggio di soluzioni grafiche multi-display.
GPU
28 nm Graphics Core Next (GCN)
Interface
PCI-Express 3.0
Memory Size/Bus
128 bit Memory Bus
GDDR5 Memory Type
72 GB/s Bandwidth
4GB Size
Displays
6 Mini DisplayPort Outputs
Resolution
4096*2160 Pixel DisplayPort Resolution
2560*1600 Pixel Dual Link DVI Resolution
1920*1200 Pixel Single Link DVI Resolution
API
OpenGL® 4.3
OpenCL 1.2
DirectX® 12
AMD Features
AMD PowerTune
AMD ZeroCore Power Technology
AMD Eyefinity 2.0
Full 30-bit Display Pipeline
8, 10, 16-bit Per Pixel Color Component Output
Discrete Digital Multi-Point Audio(DDMA)
Bezel Compensation
Screw Secure Lock for miniDP
Unified Video Decoder (UVD)
Flexible Output Configurations
Cooling
Fan Cooling
Form Factor
1 Part Slot Occupied
111.15*167.64 mm / 4.376*6.6 in.
286 g / 0.632 lb
FH/HL
Power Consumption
<50 W
Regulation
FCC / CE / C-Tick (RCM) / BSMI / KC / VCCI
CB Certificate
System Requirement
400 W Power Supply (Suggestion)
1024MB System Memory
32 -bit and 64-bit for Microsoft Windows 7, Windows 8.1, Windows 10 and Linux
DVD-ROM Drive (or Internet Access) for Software Installation
Product Accessory
2x MiniDP to DVI Passive Cable (Single-Link)
Driver Disc
Optional Accessories
Additional cables can be purchased separately:
MiniDP to DP Dongle (Equipped with Screw Secure Lock)
MiniDP to HDMI 2.0 Active Dongle (Equipped with Screw Secure Lock)
MiniDP to DVI Active Dongle (Equipped with Screw Secure Lock)
MiniDP to DVI Passive Dongle (Equipped with Screw Secure Lock)
