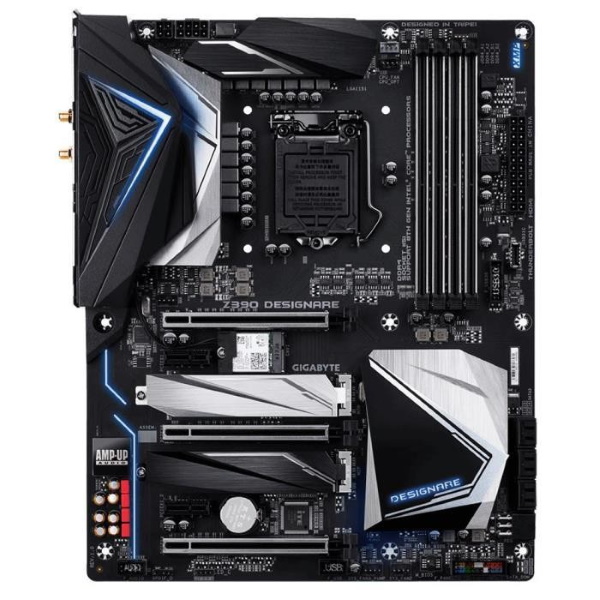

Scheda madre Gigabyte GA-Z390 DESIGNARE – Socket 1151 – Supporto Cpu Intel di 8° e 9° generazione Intel Celeron, Core i3, Core i5, Core i7, Pentium (NO supporto 7^ e 6^ Gen.) – Ram 4x DDR4 4266 fino a 2666 MHz – RAID 0/1/5/10 – 3 x PCIe 3.0 x16 slots – HDMI – 6x Usb3.1 – Glan – Audio HD 7.1 – VR Ready – ATX

1. Support for 9th and 8th Generation Intel^® Core™ i9 processors/ Intel^® Core™ i7 processors/ Intel^® Core™ i5 processors/ Intel^® Core™ i3 processors/ Intel^® Pentium^® processors/ Intel^® Celeron^® processors in the LGA1151 package
2. La Cache L3 varia da CPU a CPU

(Please refer “CPU Support List” for more information.)

1. Intel^® Z390 Express Chipset

1. 4 x DDR4 DIMM sockets supporting up to 128GB (32GB single DIMM capacity) of system memory**
2. ** Please note that the support for system total memory size depends on the CPU installed.
3. Architettura di memoria a doppio canale
4. Support for DDR4 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200(O.C.) / 3000(O.C.) / 2800(O.C.) / 2666 / 2400 / 2133 MHz memory modules
5. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
6. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
7. Supporta le memorie dotate di Profilo XMP

(Please refer “Memory Support List” for more information.)

Integrated Graphics Processor – Intel® HD Graphics support:

1. 1 x HDMI port, supporting a maximum resolution of 4096×2160@30 Hz
2. * Support for HDMI 1.4 version and HDCP 2.2.

Integrated Graphics Processor+Intel® Thunderbolt™ 3 Controller:

1. 2 x Intel® Thunderbolt™ 3 connectors (USB Type-C™ ports), supporting DisplayPort and Thunderbolt™ video outputs and a maximum resolution of 4096×2304@60 Hz
2. * Supports up to 7680×3840@60 Hz if connected to an external graphics card for display output.
3. *Because of the limited I/O resources of the PC architecture, the number of Thunderbolt™ devices that can be used is dependent on the number of the PCI Express devices being installed. (Refer to Chapter 1-7, “Back Panel Connectors,” for more information.)
4. * Support for DisplayPort 1.2 version.

Support for up to 3 displays at the same time
Maximum shared memory of 1 GB
* Actual support may vary by CPU.

1. Realtek® ALC1220-VB codec
2. * The back panel line out jack supports DSD audio.
3. Audio ad alta definizione
4. Audio a 2/4/5.1/7.1 canali
5. Supporta uscite S/PDIF

1. 2 x Intel® GbE LAN chips (10/100/1000 Mbit)

1. Intel® CNVi interface 802.11a/b/g/n/ac, supporting 2.4/5 GHz Dual-Band
2. Bluetooth 5
3. Support for 11ac 160 MHz wireless standard and up to 1.73 Gbps data rate
4. * Actual data rate may vary depending on environment and equipment.

1. 1 x PCI Express x16 slot, running at x16 (PCIEX16)
2. * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
3. 1 x PCI Express x16 slot, running at x8 (PCIEX8)
4. * The PCIEX8 slot shares bandwidth with the PCIEX16 slot. When the PCIEX8 slot is populated, the PCIEX16 slot operates at up to x8 mode.
5. 1 x Slot PCI Express x16, funzionante a x4 (PCIEX4)
6. 2 x PCI Express x1 slots
7. (All of the PCI Express slots conform to PCI Express 3.0 standard.)
8. 1 x M.2 Socket 1 connector for an Intel^® CNVi wireless module (CNVI)

Chipset:

1. 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe x4/x2 SSD support) (M2M)
2. 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe x4/x2 SSD support) (M2P)
3. 6 x SATA 6Gb/s connectors
4. Support for RAID 0, RAID 1, RAID 5, and RAID 10
5. * Refer to “1-8 Internal Connectors,” for the installation notices for the M.2 and SATA connectors.

Intel® Optane™ Memory Ready

1. Support for NVIDIA® Quad-GPU SLI™ and 2-Way NVIDIA® SLI™ technologies
2. Support for AMD Quad-GPU CrossFire™ and 3-Way/2-Way AMD CrossFire™ technologies

Chipset+USB 3.1 Gen 1 Hub:

1. 4 x USB 3.1 Gen 1 ports on the back panel

Chipset+Intel® Thunderbolt™ 3 Controller:

1. 2 x USB Type-C™ ports on the back panel, with USB 3.1 Gen 2 support

Chipset:

1. 1 x USB Type-C™ port with USB 3.1 Gen 2 support, available through the internal USB header
2. 2 x USB 3.1 Gen 2 Type-A ports (red) on the back panel
3. 2 x USB 3.1 Gen 1 ports available through the internal USB header
4. 4 x USB 2.0/1.1 ports (2 ports on the back panel, 2 ports available through the internal USB header)

1. 1 x 24-pin ATX main power connector
2. 1 Connettore di Alimentazione ATX ad 8-pin
3. 1 x 4-pin ATX 12V power connector
4. 1 x PEG power connector
5. 2 x M.2 Socket 3 connectors
6. 6 x SATA 6Gb/s connectors
7. 1 Connettore per Ventola della CPU
8. 1 x water cooling CPU fan header
9. 2 x sistema di ventilazione
10. 1 x system fan/water cooling pump header
11. 1 x RGB LED strip header
12. 1 x front panel header
13. 1 Connettore per uscite Audio Frontali
14. 1 x USB Type-C™ port, with USB 3.1 Gen 2 support
15. 1 x USB 3.1 Gen 1 header
16. 1 x USB 2.0/1.1 header
17. 1 x S/PDIF Out header
18. 1 x Clear CMOS jumper

1. 1 Connessione per Mouse e Tastiera PS/2
2. 1 x DisplayPort In port
3. 1 Porta HDMI
4. 2 x SMA antenna connectors (2T2R)
5. 2 x USB 3.1 Gen 2 Type-A ports (red)
6. 2 x Thunderbolt™ 3 connectors (USB Type-C™ ports, with USB 3.1 Gen 2 support)
7. 4 x USB 3.1 Gen 1 ports
8. 2 x USB 2.0/1.1 ports
9. 2 x RJ-45 ports
10. 1 x optical S/PDIF Out connector
11. 5 x audio jacks

1. iTE® I/O Controller Chip

1. Voltage detection
2. Temperature detection
3. Fan speed detection
4. Water cooling flow rate detection
5. Overheating warning
6. Fan fail warning
7. Fan speed control
8. * Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install.

1. 2 x 128 Mbit flash
2. Use of licensed AMI UEFI BIOS
3. Support for DualBIOS™
4. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

1. Support for APP Center
   * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
   3D OSD
   @ BIOS ™
   Ambient LED
   Auto Green
   Support for Cloud Station
   EasyTune
   Easy RAID
   Fast Boot
   Game Boost
   Platform Power Management
   Smart Backup
   Smart Keyboard
   Smart TimeLock
   Smart HUD
   Smart Survey
   System Information Viewer
   USB Blocker
   USB DAC-UP 2
2. Supporta il Q-Flash
3. Support for Xpress Install

1. Norton® Internet Security (OEM version)
2. cFosSpeed

1. Support for Windows 10 64-bit

1. ATX Form Factor; 30.5cm x 24.4cm

1. A causa delle diverse condizioni di supporto per Linux fornito da fornitori di chipset, scaricare il driver Linux dal sito web fornitori di chipset.
2. Most hardware/software vendors may no longer offer drivers to support Win9X/ME/2000/XP. If drivers are available from the vendors, we will update them on the GIGABYTE website.
