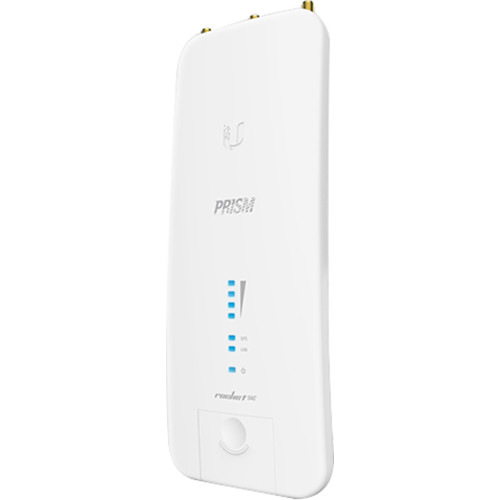

Prism Ubiquiti 5 GHz Rocket AC, PRISM, Gen2

Specifications

RP-5AC-Gen2

Dimensions 88 x 40 x 230 mm (3.47 x 1.58 x 9.06″)

Weight 400 g (14.11 oz)

Networking Interface (1) 10/100/1000 Ethernet Port

RF Connectors (2) RP-SMA (Waterproof ), (1) GPS* (Waterproof )

LEDs (4) Signal Strength, GPS*, LAN, Power

Enclosure Die-Cast Aluminum with White Powder Coating

Max. Power Consumption 9.5W

Power Supply 24V, 1A Gigabit PoE Adapter (Included)

Power Method Passive PoE (Pairs 4, 5+; 7, 8 Return)

Processor Specs Atheros MIPS 74Kc

Memory 128 MB DDR2 SDRAM

Supported Voltage Range 18-26VDC

Signal Strength LEDs Software-Adjustable to Correspond to Custom RSSI Levels

Channel Sizes PtP Mode PtMP Mode

10/20/30/40/50/60/80 MHz 10/20/30/40 MHz

ESD/EMP Protection ± 24 kV Contact / Air for Ethernet

Operating Temperature -40 to 80° C (-40 to 176° F)

Operating Humidity 5 to 95% Noncondensing

RoHS Compliance Yes

Shock and Vibration ETSI300-019-1.4

Modes Access Point, Station

Services Web Server, SNMP, SSH Server, Telnet , Ping Watchdog, DHCP, NAT, Bridging, Routing

Utilities airMagic, airView, Antenna Alignment Tool, Discovery Utility, Site Survey, Ping, Traceroute, Speed Test

Distance Adjustment Dynamic Ack and Ackless Mode

Power Adjustment Software Adjustable UI or CLI

Security WPA2 AES Only

QoS Supports Packet Level Classification WMM and User Customer Level: High/Medium/Low

Statistical Reporting Up Time, Packet Errors, Data Rates, Wireless Distance, Ethernet Link Rate

Other Remote Reset Support, Software Enabled/Disabled, VLAN Support, 256QAM, GPS*, TX Filter

Ubiquiti Specific Features 30/50/60 MHz Channels, airMAX ac Mode, Traffic Shaping with Burst Support,

Discovery Protocol, Frequency Band Offset, Ackless Mode

Certifications CE, FCC, IC

* GPS sync support available in airOS firmware v8.3.0 and newer.

Operating Frequency (MHz)

Worldwide 5150 – 5875

USA U-NII-1:

5150 – 5250

U-NII-2A:

5250 – 5350 MHz

U-NII-2C:

5470 – 5725 MHz

U-NII-3:

5725 – 5850

Management Radio (MHz)

Worldwide 2412 – 2472

USA 2412 – 2462

RP-5AC-Gen2 Output Power: 28 dBm

TX Power Specifications RX Power Specifications

Modulation Data Rate Avg. TX Tolerance Modulation Data Rate Sensitivity Tolerance

airMAX ac

1x BPSK (½) 28 dBm ± 2 dB

airMAX ac

1x BPSK (½) -96 dBm ± 2 dB

2x QPSK (½) 28 dBm ± 2 dB 2x QPSK (½) -95 dBm ± 2 dB

2x QPSK (¾) 28 dBm ± 2 dB 2x QPSK (¾) -92 dBm ± 2 dB

4x 16QAM (½) 28 dBm ± 2 dB 4x 16QAM (½) -90 dBm ± 2 dB

4x 16QAM (¾) 28 dBm ± 2 dB 4x 16QAM (¾) -86 dBm ± 2 dB

6x 64QAM (2/3) 28 dBm ± 2 dB 6x 64QAM (2/3) -83 dBm ± 2 dB

6x 64QAM (¾) 27 dBm ± 2 dB 6x 64QAM (¾) -77 dBm ± 2 dB

6x 64QAM (5/6) 26 dBm ± 2 dB 6x 64QAM (5/6) -74 dBm ± 2 dB

8x 256QAM (¾) 24 dBm ± 2 dB 8x 256QAM (¾) -69 dBm ± 2 dB

8x 256QAM (5/6) 22 dBm ± 2 dB 8x 256QAM (5/6) -65 dBm ± 2 dB
