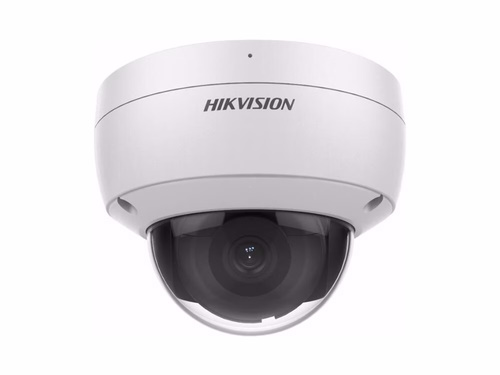

Hikvision 3 Megapixel CMOS Vandal-proof and Weather-proof WDR Network Dome Camera

Camera
Image Sensor 1/3” Progressive Scan CMOS
Min.
Illumination
0.1 Lux @ (F1.2, AGC ON), 0 lux with IR
0.14 Lux @ (F1.4, AGC ON), 0 lux with IR
Shutter Speed 1 s to 1/100,000 s
Slow Shutter Support
Lens 2.8-12mm @ F1.4, angle of view: 91.2-28.3°
-Z: 2.8-12mm @ F1.4, angle of view: 91.2-28.3°
Lens Mount F14
Angle
Adjustment
Pan:0° – 355°, Tilt: 0° – 75°, Rotation: 0° – 355°
-PT: Support electronically modifying the pan and tilt angle
Auto-iris DC drive
Day & Night IR cut filter with auto switch
Digital Noise
Reduction 3D DNR
Wide Dynamic
Range 120dB
Compression Standard
Video
Compression H.264/MPEG4/MJPEG
H.264 Type Baseline Profile / Main Profile / High Profile
Video Bit Rate 32 Kbps – 16 Mbps
Audio
Compression G.711/G.722.1/G.726/MP2L2
Audio Bit Rate 64Kbps(G.711) / 16Kbps(G.722.1) / 16Kbps(G.726) / 32-128Kbps(MP2L2)
Max. Resolution 2048×1536
Frame Rate 50Hz: 20fps (2048 × 1536), 25fps (1920 × 1080), 25fps (1280 × 720)
60Hz: 20fps (2048 × 1536), 30fps (1920 × 1080), 30fps (1280 × 720)
Third Stream
Independent with Main Stream and Sub Stream, up to
50Hz: 20fps (2048 × 1536)
60Hz: 20fps (2048 × 1536)
BLC Support
Smart Defog Support
EIS Support
Image Setting Rotate mode, Saturation, Brightness, Contrast adjustable by client software
or web browser
Day/Night
Switch Auto/Schedule/Triggered by Alarm In
ROI
Support 4 different areas configuration in all the three streams with
adjustable 6 levels. Automatically dynamic tracking with face detection can
be configured.
Picture Overlay LOGO picture can be overlaid on video with 128×128 24bit bmp format
Network
Network
Storage NAS (Support NFS,SMB/CIFS)
Alarm Trigger
Intrusion detection, Line crossing detection, Defocus detection, Scene
change detection, Motion detection, Face detection, Dynamic analysis,
Tampering alarm, Network disconnect, IP address conflict, Storage exception
Protocols TCP/IP,ICMP,HTTP,HTTPS,FTP,DHCP,DNS,DDNS,RTP,RTSP,RTCP,
PPPoE,NTP,UPnP,SMTP,SNMP,IGMP,802.1X,QoS,IPv6,Bonjour
Security User Authentication, Watermark, IP address filtering, Anonymous access
Standard ONVIF, PSIA, CGI, ISAPI
Interface
Communication
Interface 1 RJ45 10M/100M Ethernet interface
Video Output 1Vp-p composite output (75 O/RCA, for lens adjustment when installation)
On-board
storage Built-in Micro SD/SDHC/SDXC slot, up to 64 GB
Reset Button Yes
General
Operating
Conditions
-30 °C – 60 °C (-22 °F – 140 °F)
Humidity 95% or less (non-condensing)
-H: -40 °C – 60 °C (-40 °F – 140 °F) with smart heater on
Smart Heater -H: Support
Power Supply 24 VAC ± 10% / PoE (802.3af)
Power
Consumption
Max. 12.5 W
-PT: Max. 13.5W
IR Range Approx. 10 to 30 meters
Impact
Protection IEC60068-2-75Eh, 50J; EN50102, up to IK10
Ingress
Protection level IP66
Dimensions F 159.8 × 146 mm (F 6.29” × 5.75”)
Weight 2100 g (4.62 lbs)
