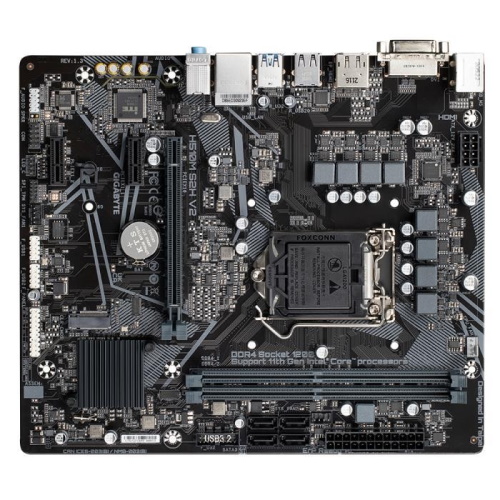

Gigabyte SCHEDA MADRE GA-H510M S2H V2SK 1200

Dettagli

Supporta processori Intel® Core™ di undicesima e decima generazione
DDR4 senza buffer non ECC a doppio canale, 2 DIMM
M.2 ultraveloce con PCIe Gen3 X4 e interfaccia SATA
GIGABYTE Esclusiva LAN da gioco 8118 con gestione della larghezza di banda
Supporto per 4 interfacce di visualizzazione
Condensatori audio di alta qualità e rumore audio
Smart Fan 6 è dotato di più sensori di temperatura, intestazioni ventole ibride con FAN STOP
GIGABYTE APP Center, semplice e facile da usare

    CPU
    LGA1200 package:
        11th Generation Intel® Core™ i9 processors / Intel® Core™ i7 processors / Intel® Core™ i5 processors
        10th Generation Intel® Core™ i9 processors / Intel® Core™ i7 processors / Intel® Core™ i5 processors / Intel® Core™ i3 processors/ Intel® Pentium® processors / Intel® Celeron® processors*
        * Limited to processors with 4 MB Intel® Smart Cache, Intel® Celeron® G5xx5 family.
        L3 cache varies with CPU
    (Please refer to “CPU Support List” for more information.)
    Chipset
        Intel® H510 Express Chipset
    Memory
        11th Generation Intel® Core™ i9/i7/i5 processors:
        Support for DDR4 3200/3000/2933/2666/2400/2133 MHz memory modules
        10th Generation Intel® Core™ i9/i7 processors:
        Support for DDR4 2933/2666/2400/2133 MHz memory modules
        10th Generation Intel® Core™ i5/i3/Pentium®/Celeron® processors:
        Support for DDR4 2666/2400/2133 MHz memory modules
        2 x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory
        Dual channel memory architecture
        Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
        Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
        Support for Extreme Memory Profile (XMP) memory modules
    (Please refer “Memory Support List” for more information.)
    Onboard Graphics
    Integrated Graphics Processor-Intel® HD Graphics support:
        1 x DVI-D port, supporting a maximum resolution of 1920×1200@60 Hz
        * The DVI-D port does not support D-Sub connection by adapter.
        1 x HDMI ports, supporting a maximum resolution of 4096×2160@30 Hz
        * Support for HDMI 1.4 version and HDCP 2.3.
        1 x DisplayPort, supporting a maximum resolution of 4096×2304@60 Hz
        * Support for DisplayPort 1.2 version and HDCP 2.3
    Support for up to 2 displays at the same time
    (Graphics specifications may vary depending on CPU support.)
    Audio
        Realtek® Audio CODEC
        High Definition Audio
        2/4/5.1/7.1-channel
        * To configure 7.1-channel audio, you need to open the audio software and select Device advanced settings > Playback Device to change the default setting first. Please visit GIGABYTE’s website for details on configuring the audio software.
    LAN
        Realtek® GbE LAN chip (1 Gbit/100 Mbit)
    Expansion Slots
        1 x PCI Express x16 slot, running at x16
        (The PCI Express x16 slot conforms to PCI Express 4.0 standard.)*
        * Supported by 11th Generation processors only.
        2 x PCI Express x1 slots
        (The PCI Express x1 slots conform to PCI Express 3.0 standard.)
    Storage Interface
    Chipset:
        1 x M.2 connector (Socket 3, M key, type 2260/2280 SATA and PCIe 3.0 x4/x2 SSD support)
        * The PCIEX1_1 slot shares bandwidth with the M.2 connector. When the PCIEX1_1 slot is populated, the M.2 connector supports up to PCIe 3.0 x2 SSD only.
        4 x SATA 6Gb/s connectors
        * Refer to “1-7 Internal Connectors,” for the installation notices for the M.2 and SATA connectors.
    USB
    Chipset:
        4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header)
    Chipset+USB 2.0 Hub:
        8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB header)
    Internal I/O Connectors
        1 x 24-pin ATX main power connector
        1 x 8-pin ATX 12V power connector
        4 x SATA 6Gb/s connectors
        1 x CPU fan header
        2 x system fan headers
        1 x RGB LED strip header
        1 x front panel header
        1 x front panel audio header
        1 x USB 3.2 Gen 1 header
        2 x USB 2.0/1.1 headers
        1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
        1 x serial port header
        1 x Clear CMOS jumper
    *All fan headers are subject to support AIO_Pump, Pump and high performance fan with the capability of delivering up to 2A/12V @ 24W.
    Back Panel Connectors
        1 x PS/2 keyboard port
        1 x PS/2 mouse port
        1 x DVI-D port
        1 x DisplayPorts
        1 x HDMI port
        2 x USB 3.2 Gen 1 ports
        4 x USB 2.0/1.1 ports
        1 x RJ-45 port
        3 x audio jacks
    I/O Controller
        iTE® I/O Controller Chip
    H/W Monitoring
        Voltage detection
        Temperature detection
        Fan speed detection
        Overheating warning
        Fan fail warning
        Fan speed control
        * Whether the fan speed control function is supported will depend on the cooler you install.
    BIOS
        1 x 256 Mbit flash
        Use of licensed AMI UEFI BIOS
        PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
    Unique Features
        Support for APP Center
        * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
        @BIOS
        Ambient LED
        EasyTune
        Fast Boot
        Game Boost
        ON/OFF Charge
        Smart Backup
        System Information Viewer
        Support for Q-Flash
        Support for Xpress Install
    Bundled Software
        Norton® Internet Security (OEM version)
        Realtek® 8118 Gaming LAN Bandwidth Control Utility
    Operating System
        Support for Windows 10 64-bit
    Form Factor
        Micro ATX Form Factor; 24.4cm x 21.0cm
