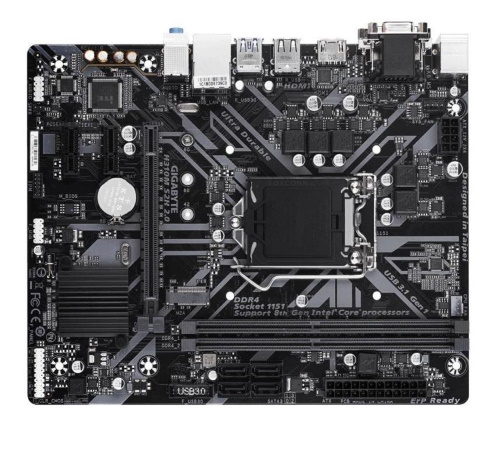

Gigabyte SCHEDA MADRE GA-H310M-S2H 2.0 SK 1151

Supporta processori Intel® Core ™ di nona e ottava generazione
     DDR4 unbuffered Non-ECC a doppio canale
     Audio HD a 8 canali con condensatori audio di alta qualità
     Ultra veloce M.2 con interfaccia PCIe Gen2 X2 e SATA
     GIGABYTE Esclusiva LAN per giochi 8118 con gestione della larghezza di banda
     Porte HDMI 1.4, DVI-D, D-sub per display multiplo
     Pronto per CEC 2019, risparmia energia con un semplice clic
     Smart Fan 5 è dotato di più sensori di temperatura e testate ibride con FAN STOP
     Tutto il nuovo APP Center GIGABYTE ™, semplice e facile da usare
     Design dei resistori anti-zolfo

• Processore
  1. Support for 9th and 8th Generation Intel^® Core™ i9 processors/Generation Intel^® Core™ i7 processors/Intel^® Core™ i5 processors/Intel^® Core™ i3 processors/Intel^® Pentium^® processors/Intel^® Celeron^® processors in the LGA1151 package
  2. La Cache L3 varia da CPU a CPU

  (Please refer “CPU Support List” for more information.)

• Chipset
  1. Intel^® H310 Express Chipset
• Memoria
  1. 2 x DDR4 DIMM sockets supporting up to 32 GB of system memory
  2. Architettura di memoria a doppio canale
  3. Support for DDR4 2666/2400/2133 MHz memory modules
  4. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
  5. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
  6. Supporta le memorie dotate di Profilo XMP
  7. * To support 2666 MHz or XMP memory, you must install an 8th Generation Intel® Core™ i7/i5 processor.

  (Please refer “Memory Support List” for more information.)

• Grafica integrata
  Integrated Graphics Processor – Intel® HD Graphics support:

  1. 1 x D-Sub port, supporting a maximum resolution of 1920×1200@60 Hz
  2. 1 x DVI-D port, supporting a maximum resolution of 1920×1200@60 Hz
     * The DVI-D port does not support D-Sub connection by adapter.
  3. 1 x HDMI port, supporting a maximum resolution of 4096×2160@30 Hz
  4. * Support for HDMI 1.4 version and HDCP 2.2.

  Maximum shared memory of 1 GB
  Maximum support of 2 independent display at one time.

• Audio
  1. Realtek^® ALC887 codec
  2. Audio ad alta definizione
  3. Audio a 2/4/5.1/7.1 canali
     *To configure 7.1-channel audio, you have to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver.
• LAN
  1. Realtek® GbE LAN chip (10/100/1000 Mbit)
• Slot di Espansione
  1. 1 x Slot PCI Express x16, funzionante a x16
  2. (Lo Slot PCIEX16 è conforme allo standard PCI Express 3.0.)
  3. 2 x Slot PCI Express x1

     (Gli Slot PCI Express x1 sono conformi allo standard PCI Express 2.0.)

• Interfaccia di storage
  Chipset:

  1. 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe x2 SSD support)
  2. 4 x SATA 6Gb/s connectors
  3. * Refer to “1-7 Internal Connectors,” for the installation notices for the M.2 and SATA connectors.
• USB
  Chipset:

  1. 4 x USB 3.1 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header)
  2. 6 x USB 2.0/1.1 ports (4 ports on the back panel, 2 ports available through the internal USB headers)
• Connettori Interni I/O
  1. 1 x 24-pin ATX main power connector
  2. 1 Connettore di Alimentazione ATX ad 8-pin
  3. 4 Connessioni SATA 6Gb/s
  4. 1 x M.2 Socket 3 connector
  5. 1 Connettore per Ventola della CPU
  6. 1 x Connettore per System Fan
  7. 1 x front panel header
  8. 1 x front panel audio header
  9. 1 x USB 3.1 Gen 1 header
  10. 1 x USB 2.0/1.1 header
  11. 1 x Trusted Platform Module (TPM) header (2×6 pin, for the GC-TPM2.0_S module only)
      La funzione TPM è opzionale in base alla regolamentazione dei vari stati
  12. 1 x speaker header
  13. 1 x Clear CMOS jumper
• Pannello Posteriore I/O
  1. 1 x PS/2 keyboard port
  2. 1 x PS/2 mouse port
  3. 1 x Porta D-Sub
  4. 1 x Porta DVI-D
  5. 1 Porta HDMI
  6. 2 x USB 3.1 Gen 1 ports
  7. 4 x USB 2.0/1.1 ports
  8. 1 Porta RJ-45
  9. 3 x audio jacks
• I/O Controller
  1. iTE® I/O Controller Chip
• Monitoraggio H/W
  1. Voltage detection
  2. Temperature detection
  3. Fan speed detection
  4. Overheating warning
  5. Fan fail warning
  6. Fan speed control
  7. * Whether the fan speed control function is supported will depend on the cooler you install.
• BIOS
  1. 1 x 128 Mbit flash
  2. Use of licensed AMI UEFI BIOS
  3. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
• Altre Caratteristiche
  1. Support for APP Center
     * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
     3D OSD
     @ BIOS ™
     Auto Green
     Support for Cloud Station
     EasyTune
     Fast Boot
     Game Boost
     Supporto alla tecnologia ON/OFF Charge
     Platform Power Management
     Smart Backup
     Smart Keyboard
     Smart TimeLock
     Smart HUD
     System Information Viewer
     USB Blocker
     V-Tuner
  2. Supporta il Q-Flash
  3. Support for Xpress Install
• Bundled Software
  1. Norton® Internet Security (OEM version)
  2. Realtek® 8118 Gaming LAN Bandwidth Control Utility
• Sistema Operativo
  1. Support for Windows 10 64-bit
• Caratteristiche Fisiche
  1. Micro ATX Form Factor; 22.6cm x 18.5cm
