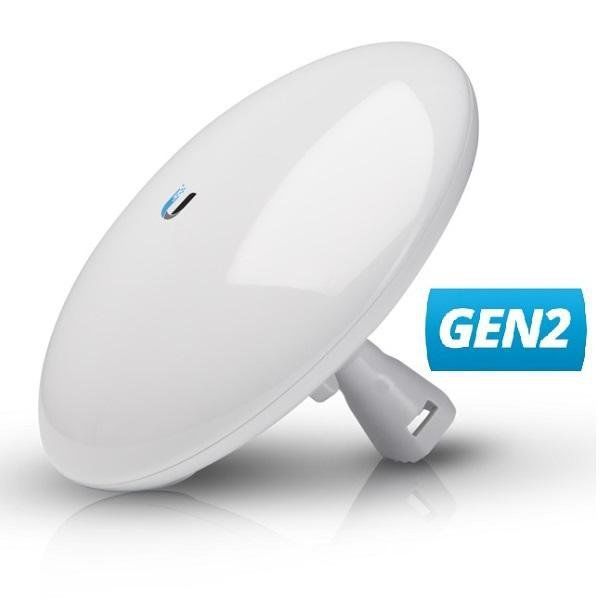

5 GHz NanoBeam AC, Gen2

Disponibilità:

Esaurito


5 GHz NanoBeam AC, Gen2

120,00

Esaurito

Specifications

NBE-5AC-Gen2

Dimensions (Mount Included) 189 x 189 x 125 mm (7.44 x 7.44 x 4.92″)

Weight (Mount Included) 0.530 kg (1.17 lb)

Power Supply 24V, 0.5A Gigabit PoE Adapter (Included)

Max. Power Consumption 8.5W

Gain 19 dBi

Networking Interface

(2) 10/100/1000 Ethernet Ports

Wi-Fi for Management

Processor Specs Atheros MIPS 74Kc, 720 MHz

Memory 128 MB DDR2, 8 MB Flash

LEDs Power, Ethernet, (4) Signal Strength

Signal Strength LEDs Software-Adjustable to Correspond to Custom RSSI Levels

Max. VSWR 1.5:1

Channel Sizes PtP Mode PtMP Mode

10/20/30/40/50/60/80 MHz 10/20/30/40 MHz

Polarization Dual Linear

Enclosure Outdoor UV Stabilized Plastic

Mounting Pole-Mount (Kit Included), Wall-Mount

Wind Loading 45.4 N @ 200 km/h (10.2 lbf @ 125 mph)

Wind Survivability 200 km/h (125 mph)

ESD/EMP Protection Air: ± 24 kV, Contact: ± 24 kV

Operating Temperature -40 to 80° C (-40 to 176° F)

Operating Humidity 5 to 95% Noncondensing

Certifications CE, FCC, IC

RoHS Compliance Yes

Salt Fog Test IEC 68-2-11 (ASTM B117), Equivalent: MIL-STD-810 G Method 509.5

Vibration Test IEC 68-2-6

Temperature Shock Test IEC 68-2-14

UV Test IEC 68-2-5 at 40° C (104° F), Equivalent: ETS 300 019-1-4

Wind-Driven Rain Test ETS 300 019-1-4, Equivalent: MIL-STD-810 G Method 506.5

Operating Frequency (MHz)

Worldwide 5150 – 5875

USA U-NII-1:

5150 – 5250

U-NII-2A:

5250 – 5350 MHz

U-NII-2C:

5470 – 5725 MHz

U-NII-3:

5725 – 5850

Management Radio (MHz)

Worldwide 2412 – 2472

USA 2412 – 2462

NBE-5AC-Gen2 Output Power: 25 dBm

TX Power Specifications RX Power Specifications

Modulation Data Rate Avg. TX Tolerance Modulation Data Rate Sensitivity Tolerance

airMAX ac

1x BPSK (½) 25 dBm ± 2 dB

airMAX ac

1x BPSK (½) -96 dBm ± 2 dB

2x QPSK (½) 25 dBm ± 2 dB 2x QPSK (½) -95 dBm ± 2 dB

2x QPSK (¾) 25 dBm ± 2 dB 2x QPSK (¾) -92 dBm ± 2 dB

4x 16QAM (½) 25 dBm ± 2 dB 4x 16QAM (½) -90 dBm ± 2 dB

4x 16QAM (¾) 25 dBm ± 2 dB 4x 16QAM (¾) -86 dBm ± 2 dB

6x 64QAM (2/3) 24 dBm ± 2 dB 6x 64QAM (2/3) -83 dBm ± 2 dB

6x 64QAM (¾) 23 dBm ± 2 dB 6x 64QAM (¾) -77 dBm ± 2 dB

6x 64QAM (5/6) 22 dBm ± 2 dB 6x 64QAM (5/6) -74 dBm ± 2 dB

8x 256QAM (¾) 21 dBm ± 2 dB 8x 256QAM (¾) -69 dBm ± 2 dB

8x 256QAM (5/6) 20 dBm ± 2 dB 8x 256QAM (5/6) -65 dBm ± 2 dB
